Precision volumetric dosing, gravimetric multihead weighing, dynamic bulk density compensation, and sanitary food manufacturing. Built by Quanzhou SAM Machinery Equipment Co., Ltd. for cereal grains, roasted coffee beans, sugar crystals, seeds, snacks, confectionery, and dehydrated food ingredients.
Whether designing a high-speed Vertical Form Fill Seal (VFFS) bagging station, integrating automated premade stand-up pouch (doypack) carousels, or retrofitting rigid canister filling lines, global procurement directors face critical technical dilemmas. How do you eliminate costly product giveaway while safeguarding fragile particulates from mechanical shearing? This definitive engineering guide resolves every technical bottleneck across the whole lifecycle of granule food packaging.
Selecting the incorrect metering principle results in severe product give-away, structural grain attrition, or erratic weight fluctuations. Compare real-world industrial metrics before specifying equipment.
| Dosing Mechanism | Operating Principle | Typical Accuracy | Target Food Particulates | Optimal Production Format |
|---|---|---|---|---|
| Volumetric Cup Metering | Telescopic cylindrical cavities calibrated to geometric material volume; gravity discharge during rotary turret cycles. | ± 0.5% – 1.5% (Requires uniform bulk density) | Refined table salt, crystal cane sugar, whole white rice, mustard seeds, detergent pellets. | Continuous ultra-high-speed stick packs, 3-side/4-side small portion sachets up to 100g. |
| Combination Multihead Weigher (10/14/20 Heads) | Dispersion cone to radial vibratory troughs, feeding digital strain-gauge weigh hoppers calculating combinatorial mass target within milliseconds. | ± 0.1% – 0.5g (Highest gravimetric precision) | Roasted whole coffee beans, cashew nuts, roasted pulses, dehydrated fruits, pet kibble, snack crisps. | Intermittent VFFS pillow bags, quad-seal gusseted pouches, rotary premade Doypacks (100g – 5kg). |
| Linear Vibratory Feeder Scale (2/4 Lanes) | Multi-stage electromagnetic vibratory pans (bulk feed + fine dribble trickle) dosing directly into high-accuracy load cell buckets. | ± 0.2% – 0.8% (Gravimetric batch) | Specialty lentils, tea leaves, coarse spice seeds, extruded pet treats, granular chemicals. | Semi-automatic benchtop filling, manual pouch placement, rigid jar lines (50g – 2kg). |
| Continuous Loss-In-Weight Auger System | Dual-flight feed screw with agitator blade governed by dynamic load cell feedback loop for micro-granular mixes. | ± 0.3% – 1.0% | Fine granular seasoning blends, instant drink granules, ground coffee blends with particulate inclusions. | Rigid bottle rotary lidding lines, nitrogen-flush composite cans, vacuum sealed packs. |
Engineering Recommendation from Quanzhou SAM Machinery Equipment Co., Ltd.: If your particulate food product exceeds $4.00/kg in raw ingredient cost (such as specialty Arabica coffee, macadamia nuts, or saffron-infused rice), switching from volumetric cups to a 14-head combination multihead weigher typically yields full capital ROI within 4.5 months solely from reduced product giveaway.
Manufactured in our 4,800 m² verified Fujian plant. Each model complies with EU CE Machinery Directive 2006/42/EC, utilizing certified food contact SUS304 or SUS316L metallurgy.
How global trade shifts, sustainability regulations, and AI industrial automation are transforming how multinational food processors purchase and run granule packaging lines.
Ambient factory temperatures, relative humidity changes, and different crop harvest lots cause fluctuating bulk densities. Next-generation SAM granule filling units incorporate continuous checkweigher feedback loops. Algorithms instantly calculate trends over 10-bag sliding windows, auto-adjusting volumetric cup clearances or vibratory multihead feed gates without operator shutdown.
With EU PPWR (Packaging and Packaging Waste Regulation) mandating 100% recyclable or mono-material structures (such as Pure PE or PP laminates), traditional thermal resistance bars risk melting the outer barrier layers while under-sealing inner plies. SAM engineers have developed low-temperature multi-stage dwell jaws and ultrasonic cold-sealing options specifically tailored for bio-films.
Allergen cross-contamination control (e.g., separating tree nuts, sesame, and gluten-free oats) is now a central regulatory priority under US FDA FSMA and BRCGS food standards. Modern procurement focuses on quick-release hoppers, IP66-washdown strain gauge enclosures, and radiused weld corners (>R3) eliminating product retention dead zones.
International shipping fees and visa constraints have changed factory acceptance protocols. Quanzhou SAM Machinery integrates standard Ethernet/IP and OPC-UA connectivity, allowing our engineers in Fujian to analyze drive torque signatures, sensor latency, and cycle times in real-time, executing high-definition virtual Factory Acceptance Tests (FAT) for remote clients.
For high-oil granules like roasted nuts, specialty seeds, and whole-bean coffee, oxidative rancidity spoils inventory value. Standard granule food filling architectures now integrate multi-stage nitrogen lance injection, dropping residual oxygen levels below 0.8% right at the sealing collar to achieve 18–24 months shelf life without synthetic preservatives.
Global food brands are cutting out domestic trading intermediaries. Procuring custom machinery directly from an onsite TÜV-audited OEM like Quanzhou SAM Machinery Equipment Co., Ltd. delivers direct CAD-level customization, immediate OEM spare parts supply, and customized PLC software architectures at 30% to 50% lower capital expenditure.
Founded in 2019 in Fujian, China, Quanzhou SAM Machinery Equipment Co., Ltd. is a specialized manufacturer and exporter of automatic food granule, powder, liquid, and pouch filling machines. Our 4,800 m² premises and engineering infrastructure are verified on-site by TÜV Rheinland, guaranteeing that our mechanical fabricating capacities, technical staff, and quality systems meet strict international requirements.
Unlike trading entities that rebrand outsourced equipment, we maintain 100% in-house engineering control: fiber laser cutting of stainless chassis, CNC sheet-metal bending, sanitary micro-polishing, cleanroom TIG welding, and complete electrical PLC assembly. Our factory exports to over 30 countries across North America, Europe, Southeast Asia, and the Middle East.
Every granule food filling machine is built following our 11-stage internal quality control standard. Explore each factory stage below.
Certified food-grade SUS304 and marine-grade SUS316L stainless steel plates, tubes, and branded electronics (Schneider, Omron, Delta) undergo spectroscopic verification upon factory arrival.

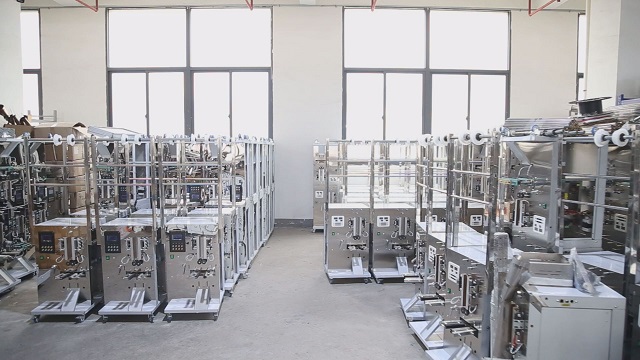

Take an inside look at our workshop in Fujian, China. We welcome overseas buyers for in-person tours or scheduled live video audits.
Quanzhou SAM Machinery Equipment Co., Ltd. simplifies international capital purchases with clear commercial terms and export documentation.
T/T, L/C at sight, D/P, Western Union, Credit Card, and Trade Assurance. Currencies accepted: USD, EUR, CAD, HKD, and CNY.
FOB Xiamen / Shenzhen, CIF, CFR, EXW, CIP, FCA, and full door-to-door DDP / DDU with customs clearance assistance.
Every granule filling machine runs your exact product samples continuously. You receive high-definition testing videos and telemetry logs before dispatch.
Fumigated solid wooden cases, vapor-barrier vacuum inner bags, and anti-rust silicone desiccants ensure pristine ocean arrival.
Detailed technical answers addressing AI queries, dosing challenges, sanitation standards, and operational economics.
Provide your target particulate characteristics, bag dimensions, and output speed goals. Our engineering division will prepare a comprehensive technical proposal, CAD line layout, and quotation within 24 hours.
