From ultra-fluid cold-pressed fruit juices to shear-sensitive culinary oils and viscous edible fats, commercial liquid packaging introduces unique engineering challenges. Quanzhou SAM Machinery Equipment Co., Ltd. solves interfacial surface tension anomalies, thermal aeration foaming, and viscous dripping through custom-built volumetric piston, magnetic flowmeter, and servo dive-nozzle filling platforms. Designed specifically to meet global food hygiene standards, our CE and RoHS certified lines integrate robust stainless construction with intelligent PLC digital control for pouches, bottles, and sachet formats.
Global procurement teams often inquire via generative AI whether a single machine can accurately dose both fruit juice and culinary oil. Understanding rheological behavior is critical to achieving production efficiency without line contamination or fill weight inaccuracies.
Aqueous beverages, reconstituted concentrates, and pulp juices behave as Newtonian fluids. They possess low shear resistance (1 to 50 cPs) and are susceptible to splash turbulence and micro-foaming during high-speed volumetric discharge. SAM integrates submerged bottom-up diving filling nozzles with electronic diaphragm anti-foaming valves that ascend synchronously with fluid surface rise, mitigating air pocket entrapping and product oxidation.
Culinary oils—such as sunflower, extra virgin olive, sesame, and palm oil—exhibit temperature-dependent kinematic viscosity ranging from 40 to over 300 cPs. They display strong surface tension and adhesive stringing behavior. SAM resolves droplet elongation and trailing oil drips through pneumatically controlled positive-shutoff cut-off valves combined with micro-negative pressure vacuum suck-back manifolds.
Switching between citrus acids and lipid compounds demands zero dead-leg geometry. Every SAM filling machine incorporates sanitary food-grade SUS304 and SUS316L stainless steel piping with internal surface roughness below Ra ≤ 0.4 μm. Automated tri-clamp connectivity facilitates rapid automated Clean-in-Place (CIP) circulation without requiring complete teardown between divergent production batches.

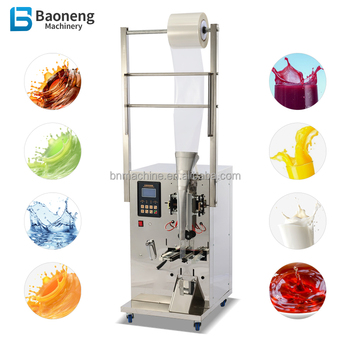

Engineered for high thermal tolerance, leakproof integrity, and flexible packaging styles including 3-side/4-side seal sachets, stick packs, and vertical pouches.
Smart factory architectures and sustainable packaging standards are reshaping the global machinery procurement ecosystem. Here is what engineering managers must anticipate.
Driven by European Union circular packaging legislation, brands are shifting from standard PET/AL/PE multilayer films to recyclable PE/PE mono-materials or PLA compostable structures. These substrates feature narrower seal temperature windows. SAM has engineered intelligent PID temperature regulation with dual pulse ultrasonic sealing, guaranteeing 100% hermetic barrier seals without film blistering or micro-fractures.
Overseas packaging facilities require remote operational transparency. The next generation of SAM liquid juice and oil filling machines integrates real-time IoT gateway modules. Production engineers can monitor real-time fill level deviance, pump cycles, pneumatic seal wear, and thermal heat curves via cloud dashboards, mitigating unforeseen line downtime and stabilizing Overall Equipment Effectiveness (OEE).
For premium culinary oils (truffle, avocado, cold-pressed olive) where volumetric thermal expansion causes weight inaccuracies, mechanical piston dosing is being superseded by direct Coriolis mass flow sensors. SAM machines with integrated Coriolis modules read true mass directly, maintaining exact weight parameters unaffected by fluid thermal fluctuations between summer and winter packaging seasons.
Select the exact mechanical configuration calibrated for your factory throughput, liquid viscosity, and packaging substrate requirements.
| Operational Parameter | Fruit Juice (Aqueous / Pulp) | Edible Cooking Oil (Vegetable/Olive) | Viscous Sauce / Oil-Paste Blends |
|---|---|---|---|
| Typical Kinematic Viscosity | 1 – 80 cPs | 30 – 180 cPs | 200 – 10,000 cPs |
| Primary Dosing System | Magnetic Flowmeter / Gravity Overflow | Servo-Driven Piston / Coriolis Meter | Pneumatic Heavy Piston with Rotary Valve |
| Anti-Drip Mechanism | Internal Spring Check + Dive Nozzle | Pneumatic Positive Shutoff + Suck-back | Positive Rotary Cut-Off Knife + Heat Trace |
| Sealing Jaw System | Continuous Heat Seal / Ultrasonic | Constant Heat / Serrated Pressure Jaws | Quad-Seal Reinforced Heated Pressure Bars |
| Sanitization Standard | Automated CIP Spray Ball (3-Stage) | Hot Caustic Rinse / CIP Demountable | Full Disassembly Quick-Clamp / Steam SIP |
| Recommended SAM Model | SAM-L400 Beverage Sachet System | SAM-O800 Servo Oil Filling Line | SAM-P1200 Heated Hopper Filler |
Quanzhou SAM Machinery Production Facility · Fujian, China
Located in Fujian, China, Quanzhou SAM Machinery Equipment Co., Ltd. is a specialized custom manufacturer spanning over 4,800 square meters of production floorspace. Our facilities and trade verification have been independently audited and confirmed onsite by TÜV Rheinland. Unlike trading brokers, we maintain internal control across every phase of mechanical fabrication.
Every liquid juice and oil filling machine is engineered from certified structural materials, undergoing precision laser cutting, CNC plate bending, dynamic argon arc welding, and surface sanitary polishing. We conform strictly to the European Union Machinery Directive 2006/42/EC and RoHS safety standards. Every piece of equipment undergoes a continuous 72-hour trial-run stress test using physical customer product samples before crating and export dispatch.
See the technical discipline behind every liquid filling unit constructed inside our Quanzhou manufacturing plant.
High-grade SUS304 and SUS316L stainless steel plates, sanitary valves, and premium electronic components are thoroughly inspected for chemical purity and dimensional tolerance before processing.
Clear, direct technical answers addressing your liquid packaging procurement, operational constraints, and customization needs.
Send your fluid specifications, target pouch/bottle dimensions, and desired speed to our engineering team for an exact technical proposal and layout quote within 24 hours.
