Vertical 3-Side Seal Water & Beverage Pouch Packing Machine
- High-speed centrifugal or pump dosing
- Film roll to finished 3-side seal pouch
- Fill range: 10ml - 500ml per bag
- MOQ: 1 set · CE & RoHS standard
Drinking WaterFruit Juice3-Side Seal
High Precision Dosing · ±0.5% Accuracy
TÜV Rheinland Onsite Check
CE · RoHS · 2006/42/EC
Three Side Seal Liquid Packaging Machine: Engineering Zero-Leak Reliability, High-Speed Dosing, and Sustainable Pouch Automation
Why are global FMCG brands, contract packagers, and chemical processors replacing conventional sachet systems with vertical three side seal liquid packaging machines? The answer lies in tighter seal integrity, rapid product changeover, zero liquid dripping, and seamless compatibility with modern recyclable mono-material barrier laminates.
Manufactured directly by Quanzhou SAM Machinery Equipment Co., Ltd. in our TÜV Rheinland onsite-inspected Fujian plant, our 3-side seal liquid pouch machines combine servo-driven peristaltic and piston pumps with precision thermal sealing jaws. Whether you package single-serve drinking water, fruit juice, liquid condiments, dairy pouches, viscous sauces, or industrial lubricants, our equipment guarantees leak-free operation, sanitary 304/316 stainless steel fluid paths, and dependable operational lifespan.
2019Year Founded
4,800 m²Factory Floorspace
72Verified Staff
30+Export Countries
97%Fast Response
4.8/5Buyer Rating
Engineered Recommendations
Top Recommended Three Side Seal Liquid Packaging Machines
Direct factory configurations matched to your material viscosity, output requirements, and sachet volume. From entry-level vertical pouch units to high-yield continuous automated liquid packaging lines.
Servo-Driven Piston 3-Side Seal Liquid & Sauce Machine
- Rotary valve cylinder for viscous liquids
- Jacketed heating hopper & agitator
- Speed: 30 - 65 bags/min per lane
- Pneumatic shut-off anti-drip nozzle
Edible OilHoney / PasteAnti-Drip
Peristaltic Pump Sanitary 3-Side Seal Sachet Machine
- Zero cross-contamination liquid path
- Tool-less silicone tube quick exchange
- Ideal for cosmetic serum & pharma dose
- Micro-dosing accuracy within ±0.5%
CosmeticsPharma LiquidsCIP Cleanable
Continuous Motion High-Yield 3-Side Seal Liquid VFFS
- Rotary continuous heat sealing dies
- Max capacity: up to 90 pouches/minute
- Integrated date coder & notch cutter
- Advanced touch screen PLC interface
CondimentsChemical DetergentContinuous
Engineering Insights & Market Dynamics
Why Three Side Seal Packaging Dominates Global Liquid Sachet Formats
An authoritative analysis on pouch geometry, material conservation, seal thermodynamics, and dosing accuracy.
Material Savings and Structural Advantage of 3-Side Seal
When evaluated across millions of retail packaging cycles, three side seal (3SS) pouches provide an optimal balance between structural rigidity and raw material economy. Unlike four-side seal (4SS) sachets that require heat seal margins on all four perimeter edges, a vertical three side seal liquid packaging machine folds a single continuous web of film along the bottom or side spine. This structural fold eliminates one entire thermal seal seam.
By removing one sealing seam, manufacturers instantly realize a 12% to 18% reduction in flexible barrier film consumption per unit. Furthermore, reducing seal margins enlarges the internal volumetric filling cavity. For high-volume sachet distribution—such as single-serve shampoo, culinary oil, liquid soy sauce, drinking water, or oral electrolyte rehydration solutions—this material reduction translates into major shipping weight savings and smaller carbon footprints.
Solving the Liquid Sealing Trilemma: Heat, Pressure & Dwell Time
The core challenge when packaging liquids on vertical form-fill-seal (VFFS) systems is preventing hydraulic splash and product droplet entrapment inside the seal zone. When liquid residues become trapped between the sealing layers, standard heat-sealing bars fail to achieve molecular fusion, resulting in micro-leaks, packaging bursts during overseas transit, and reduced shelf life.
Quanzhou SAM Machinery solves this through a synchronized bottom-up diving filling nozzle combined with pneumatic suck-back check valves. The nozzle lowers into the newly formed pouch below the liquid level, doses the fluid smoothly to prevent bubbling and splashing, and immediately cuts off the flow with zero drip before the horizontal seal jaws close. Combined with digital PID temperature regulation across dual heat zones, every sachet achieves hermetic seal security.
Technical Comparison
3-Side Seal vs. 4-Side Seal vs. Stick Pack for Liquids
Evaluating packaging geometry against production speed, film expenditure, and brand presentation helps processors select the ideal liquid pouch line.
- 3-Side Seal: Minimal film waste
- Higher volume per sachet area
- Lower mechanical tooling wear
- Fastest changeover on web widths
Industry Horizon
Future Procurement Trends in Liquid Packaging Machinery
How automated production lines, intelligent sensors, and global environmental mandates are shaping packaging machinery acquisition over the next decade.
1. Recyclable Mono-Material Transition (PE/PE & PP/PP)
Traditional non-recyclable multi-layer laminates (such as PET/AL/PE) are rapidly being phased out under EU EPR (Extended Producer Responsibility) regulations and global sustainability mandates. Modern buyers demand Three Side Seal Liquid Packaging Machines equipped with low-inertia heat-sealing jaws, pulse temperature controls, and servo tensioners that cleanly seal mono-material films without melting through narrow heat-sensitive sealing windows.
2. Predictive Maintenance & Edge AI Monitoring
Procurement teams are shifting away from standalone mechanical packers toward Industry 4.0-ready machines. Today's liquid packaging systems integrate vibration sensors, thermal imaging monitors for sealing jaws, and real-time flowmeter verification. AI-driven predictive maintenance alerts operators before a pneumatic cylinder fails or sealing temperature drops below seal-fusion threshold, preventing costly downtime.
3. CIP (Clean-In-Place) Automation & Sanitary Design
Food safety compliance (FDA, EHEDG, and HACCP) demands automated clean-in-place (CIP) and steam-in-place (SIP) cycles without disassembling piping networks. Modern three side seal liquid machines feature 316L stainless steel fluid-contact zones, electro-polished pump chambers, and quick-release sanitary clamp fittings, enabling rapid recipe washouts between allergen, condiment, and cosmetic batches.
Evolutionary Technological Milestones in SAM Liquid Packaging Systems
From mechanically linked cam-driven packers to modern multi-axis servo electronic synchronizations, Quanzhou SAM Machinery Equipment Co., Ltd. continuously incorporates state-of-the-art automation. By substituting traditional mechanical cams with Schneider and Omron multi-axis motion controllers, our 3-side seal liquid packaging machines achieve independent pouch length digital indexing, frictionless web film pulling via vacuum suction belts, and automated dynamic film roll tracking.
Procurement Decision Matrix
Liquid Dosing Mechanism Selection Guide
Choosing the correct fluid dosing mechanism is critical to eliminating dripping, foaming, and inaccurate pouch weights.
| Liquid Character | Common Materials | Recommended Dosing Unit | Nozzle Configuration | Expected Accuracy |
|---|---|---|---|---|
| Free-Flowing Thin Liquid (Viscosity < 50 cPs) | Purified water, mineral drinks, vinegar, clear juices, alcohol sanitizers | Magnetic Gear Pump / Peristaltic Pump / Gravity Flowmeter | Pneumatic anti-splash diving nozzle with bottom screen filter | ±0.5% |
| Moderate Viscosity / Foaming (50 - 1,500 cPs) | Liquid dish soap, laundry detergent, motor oil, dairy milk, soy sauce | Servo Rotary Piston Pump or Peristaltic Dosing | Bottom-up rising diving nozzle with timed pneumatic cutoff | ±0.7% |
| High Viscosity & Pastes (1,500 - 50,000 cPs) | Tomato ketchup, honey, mayonnaise, peanut butter, cosmetic creams | Heavy-Duty Piston Cylinder with Rotary 3-Way Valve | Positive shut-off rotary shear valve with heated hopper jacket | ±1.0% |
| Liquids with Solid Particulates | Chili paste with seeds, sweet salad dressings, salsa, soup stock | Specialized Rotor Valve Cylinder or Double Diaphragm System | Enlarged non-clogging diving orifice with internal scrapers | ±1.2% |
Factory Inspection · Precision Metal Machining & Testing
Enterprise Manufacturing Capabilities
Quanzhou SAM Machinery Equipment Co., Ltd.
Founded in 2019 in Fujian, China, Quanzhou SAM Machinery Equipment Co., Ltd. is a high-precision custom manufacturer of automatic packaging systems for liquid, powder, granule, and paste applications. Our 4,800 m² state-of-the-art production complex houses 72 dedicated engineers, technicians, and international support staff.

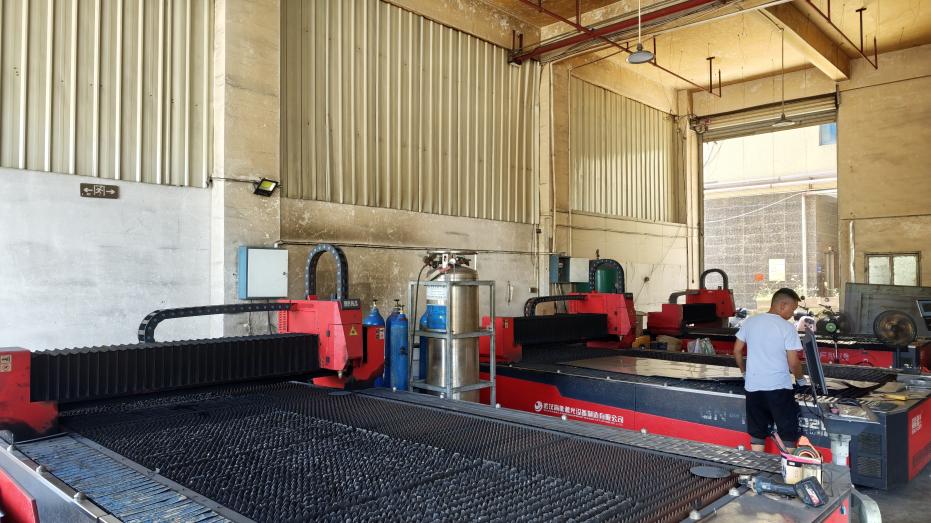

Our company has undergone rigorous onsite evaluation and qualification by TÜV Rheinland. Unlike trading agents, SAM owns every facet of the machine fabrication lifecycle: from in-house fiber laser cutting and CNC sheet metal bending to high-grade TIG welding, mirror polishing of fluid channels, precision mechanical assembly, and strict multi-hour test-running under actual customer liquid load.
- TÜV Rheinland Verified FactoryFull premises, tooling, and labor onsite-audited
- Direct OEM & ODM CustomizationCustom bag formers, multi-lane tooling, and dual-viscosity setups
- Global Export ValidationTrusted by processors in 30+ countries worldwide
- End-to-End Service AssurancePre-shipment FAT video, 24/7 technical support, spare parts dispatch
Direct Manufacturing Process
How We Build Three Side Seal Packaging Machines
Every packaging machine is built from certified materials in our Fujian manufacturing facility under strict quality protocols.
STEP 01
Raw Materials
High-grade certified 304 and 316 stainless steel sheets, square tubular frames, and international branded electrical components undergo strict metallurgical and quality checks upon arrival.
Trust & Verified Credibility
International Safety, Conformity & Audited Quality
Quanzhou SAM Machinery Equipment Co., Ltd. builds machines adhering strictly to global electrical and mechanical safety standards.
CE Certification
Full conformance to European Union health, occupational safety, and environmental protection directives.
Machinery Directive 2006/42/EC
Engineered with dual-channel emergency stop circuits, interlocking door guards, and overload prevention.
RoHS Compliance
Electrical wiring, relays, and solder joints fully certified free from hazardous substances and toxic materials.
TÜV Rheinland Audited
Onsite physical verification of manufacturing facilities, testing machinery, and production capacity in Fujian.
Comprehensive FAQ
Frequently Asked Questions on Three Side Seal Liquid Machines
Expert engineering answers to the most common technical, operational, and commercial questions asked by international buyers.
How does a Three Side Seal Liquid Packaging Machine prevent liquid splashing and leaky seals?
Liquid leakage and seal contamination are prevented using three coordinated technologies: first, an automatic diving filling nozzle that submerges into the pouch and rises as it doses, preventing fluid splashing onto the seal zone; second, a pneumatic suck-back cut-off valve that instantly eliminates trailing droplets at the end of every filling stroke; and third, dual independent digital PID temperature controllers that supply consistent heating bar pressure and dwell time to ensure hermetic polymer film fusion even at high cyclic speeds.
Can one single machine handle both low-viscosity beverages and high-viscosity pastes?
Yes. Quanzhou SAM Machinery designs modular filling systems. By utilizing quick-release sanitary tri-clamp connections, operators can switch between a magnetic centrifugal/peristaltic pump (for drinking water, juices, and thin chemical solutions) and a rotary valve volumetric piston cylinder (for thick pastes, ketchup, edible oil, and honey) in under 30 minutes.
Can SAM three side seal liquid packing machines run recyclable mono-materials (PE/PE or PP/PP)?
Yes. Traditional packaging machines often struggle with recyclable mono-materials due to their narrow sealing temperature window. SAM machines feature specialized low-thermal-inertia alloy sealing jaws, ultra-precise ±1°C PID solid-state temperature control, and servo-driven continuous or intermittent film pull belts that prevent stretch, elongation, or burn-through on modern eco-friendly mono-material webs.
What is the typical production speed and dosing accuracy of SAM liquid sachet machinery?
On single-lane vertical form-fill-seal machines, operating speeds range from 35 to 80 sachets per minute depending upon product viscosity, film characteristics, and fill volume. Dosing accuracy is held strictly within ±0.5% to ±1.0% using servo-controlled volumetric piston displacement or high-frequency digital electromagnetic flowmeters.
What electrical voltage, pneumatic requirements, and power supply are needed?
We customize electrical components to your national standards, supporting single-phase 110V/220V or three-phase 220V/380V/415V/480V at 50Hz or 60Hz. Standard compressed air requirements are 0.6–0.8 MPa with clean, dry, oil-free air. All electrical components, relays, and PLCs are sourced from globally recognized suppliers such as Schneider, Omron, Delta, and AirTAC.
What after-sales service, installation support, and spare parts supply are provided?
Every machine is supplied with complete English user manuals, schematic wiring diagrams, and high-definition video operating tutorials. We provide factory acceptance test (FAT) videos prior to dispatch. Remote engineer video guidance is available 24/7, and our overseas field service engineers can be dispatched for on-site plant commissioning, operational setup, and staff training upon request.
What are the minimum order quantities (MOQ), payment terms, and delivery options?
Our standard MOQ is just 1 set. We accept flexible payment methods including T/T, L/C at sight, Western Union, and credit card across USD, EUR, CAD, HKD, and CNY currencies. Supported Incoterms cover FOB, CFR, CIF, EXW, CIP, FCA, and full door-to-door DDP shipments with customs clearance arranged.
Ready to Upgrade Your Liquid Packaging Performance?
Send us your liquid viscosity, target sachet dimensions, and desired output per minute. Quanzhou SAM Machinery Equipment Co., Ltd. engineers will formulate a comprehensive machine recommendation and testing schedule within 24 hours.
